Horizontal Directional Drills (HDD)

TERRA’s HDD drill rigs are designed to pack serious performance into a compact, jobsite-friendly package—covering a broad spread of directional drills (6–20 tonnes) with all-terrain options and dual-rod rock-drilling variants for tougher ground conditions, plus pit-launched machines for tighter launch locations. On the S-Series rigs, the hydraulic system is set up so you can apply strong pullback and torque simultaneously under full load, helping you maintain steady production in mixed or demanding geology. Add in an operator-focused cab and control layout, plus service-friendly access to key components, and you get a rig that’s built to stay productive and straightforward to live with on site—day after day.

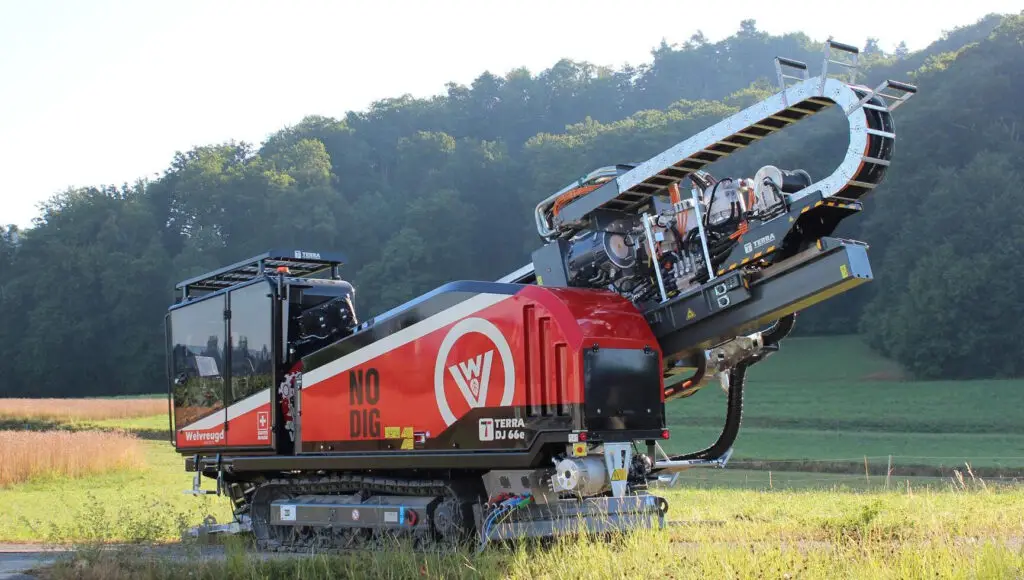

TERRA-JET DJ 66e
HDD class: 30 tons
  • Fully electric HDD drilling rig
  • Directional drilling up to 600 m in length
  • Thrust and pullback: 30 t
  • Rotational torque: 12,500 Nm
  • Bentonite flow rate: 1,000 l/min
  • Reduction of CO2 emissions

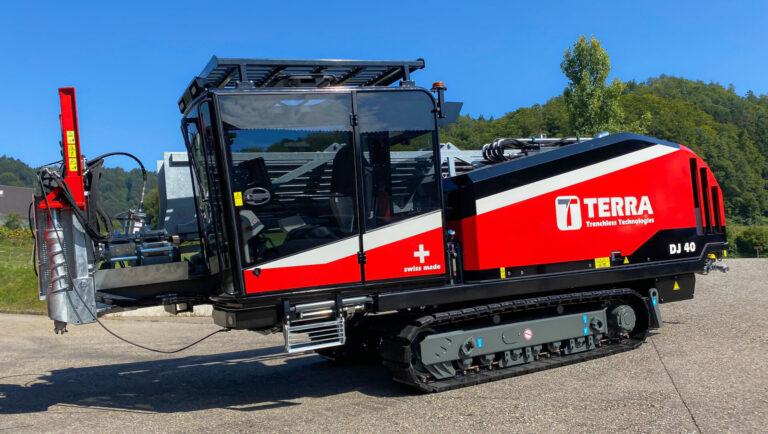

TERRA-JET DJ 40
HDD class: 18–20 tons
  • Directional drilling up to 400 m in length
  • Thrust and pullback: 18 t
  • Rotational torque: 8,000 Nm
  • Bentonite flow rate: 510 l/min
  • Cab with perfect all-round visibility
  • Drill rods in magazine: 230 m

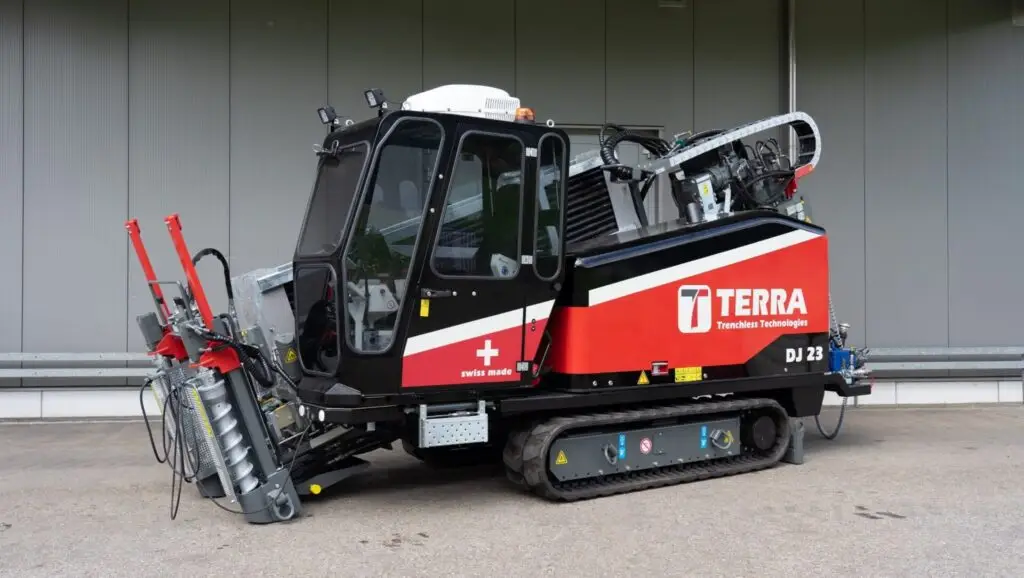

TERRA-JET DJ 23
HDD class: 10–13 tons
  • Directional drilling up to 200 m in length
  • Thrust and pullback: 11 t
  • Rotational torque: 3,000 Nm
  • Bentonite flow rate: 185 l/min
  • Ideal for the installation of fibre optic cables
  • Drill rods on board: 160 m
TERRA-JET DJ 20
HDD class: 8–10 tons
  • Directional drilling up to 150 m in length
  • Thrust and pullback: 9 t
  • Rotational torque: 2,800 Nm
  • Bentonite flow rate: 95 l/min
  • Service-friendly design
  • Drill rods on board: 120 m

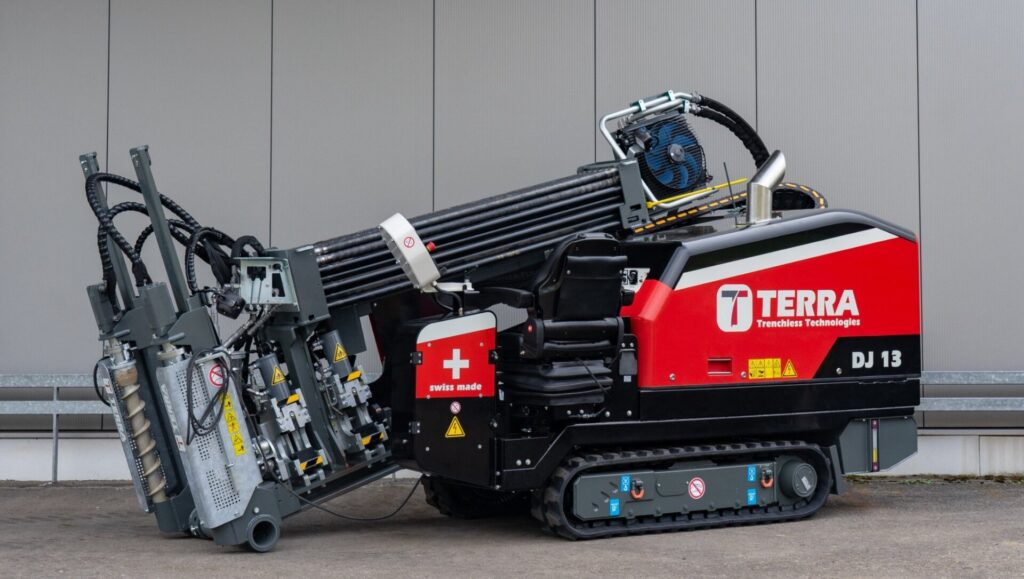

TERRA-JET DJ 13
HDD class: 6–8 tons
  • Directional drilling up to 120 m in length
  • Thrust and pullback: 6 t
  • Rotational torque: 2,300 Nm
  • Bentonite flow rate: 160 l/min
  • Patented double cylinder drive
  • Ideal for urban areas

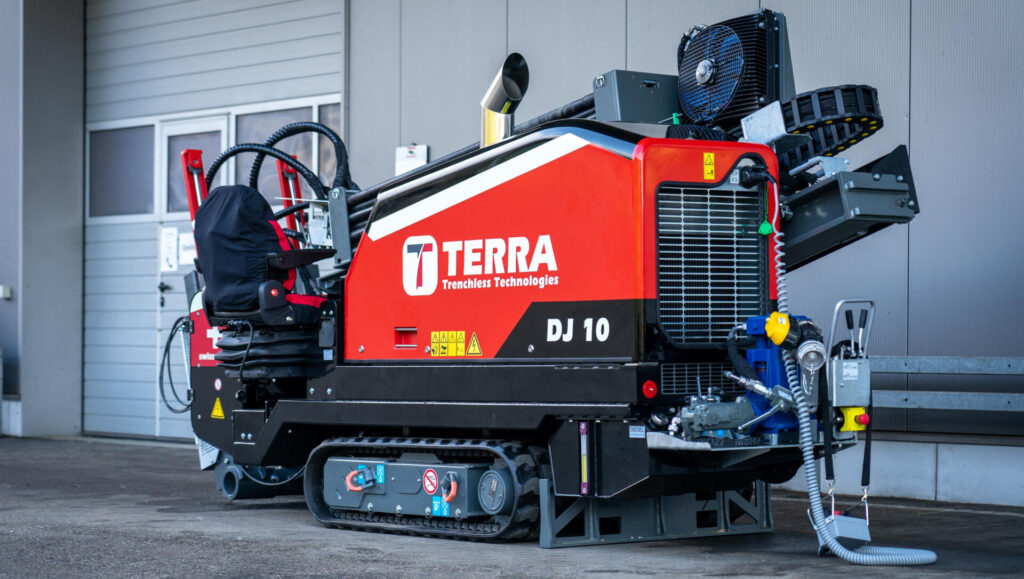

TERRA-JET DJ 10
HDD class: 4–6 tons
  • Directional drilling up to 100 m in length
  • Thrust and pullback: 4 t
  • Torque: 1,800 Nm
  • Bentonite flow rate: 95 l/min
  • Drilling ramp inclination: 30–50%
  • Patented double cylinder drive
