Additional push and pull capacity

Extra power for pipe pullback.

A specialist pipe-handling system designed to provide controlled supplementary force for demanding pullback operations and tunnel-boring applications.

Explore the system

20–60″Pipeline diameter range
90–120 kNmDrive torque range
6–24 mModular configuration
400–1,000 tMaximum overall push force

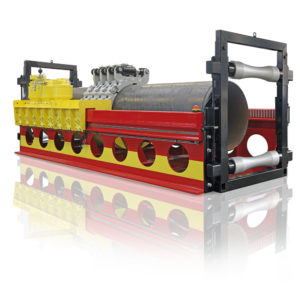

PRIME Pipe Pusher

PRIME Pipe Pusher

Controlled force, distributed around the pipe.



The system transfers force through tensioning chains housed around the product pipe. Their geometry distributes surface pressure evenly around the circumference while the casing connects directly to the selected feeding system.

Lightweight construction
High structural stability
Even surface pressure
Adaptable installation

How it integrates

Configured around the site and operation


Mounting options

Choose the installation

Mount the Pipe Pusher on the drill mast or specify a separate steel-frame arrangement.

Drive options

Select the feed system

Configure the system with a rack-and-pinion or cylinder drive to suit the operation.

Controlled load transfer

Apply controlled force

Tensioning chains transfer the required push or pull force evenly around the pipe.

Flexible configuration

One concept, adapted to demanding job sites.

TA Drilling can help review the intended application, pipe size, required force, rig arrangement and site constraints before specification.

Rack & pinionOptional drive arrangement
Cylinder driveAlternative feeding system
Drill-mast mountingIntegrated with a drilling rig
Steel-frame mountingSeparate site configuration

Discuss your pipe pullback

Could the PRIME Pipe Pusher support your project?
