Ram Tool Accessories

Build the ram around the pipe and the launch.

Genuine TERRA steel pipe ramming accessories selected around the machine, casing diameter, launch arrangement and project requirements.

View Manufacturer Specification Enquire with TA Drilling

Five accessory groups

Everything needed to transfer, launch and maintain.

Accessory selection depends on the ram, pipe diameter, launch arrangement and project conditions. TA Drilling can help identify the correct components for a complete ramming system.

01 / Impact transfer

Ram Plates

Connect and transfer impact energy into the ramming assembly. Correct selection helps match the pneumatic ram to the intended installation.

02 / Pipe connection

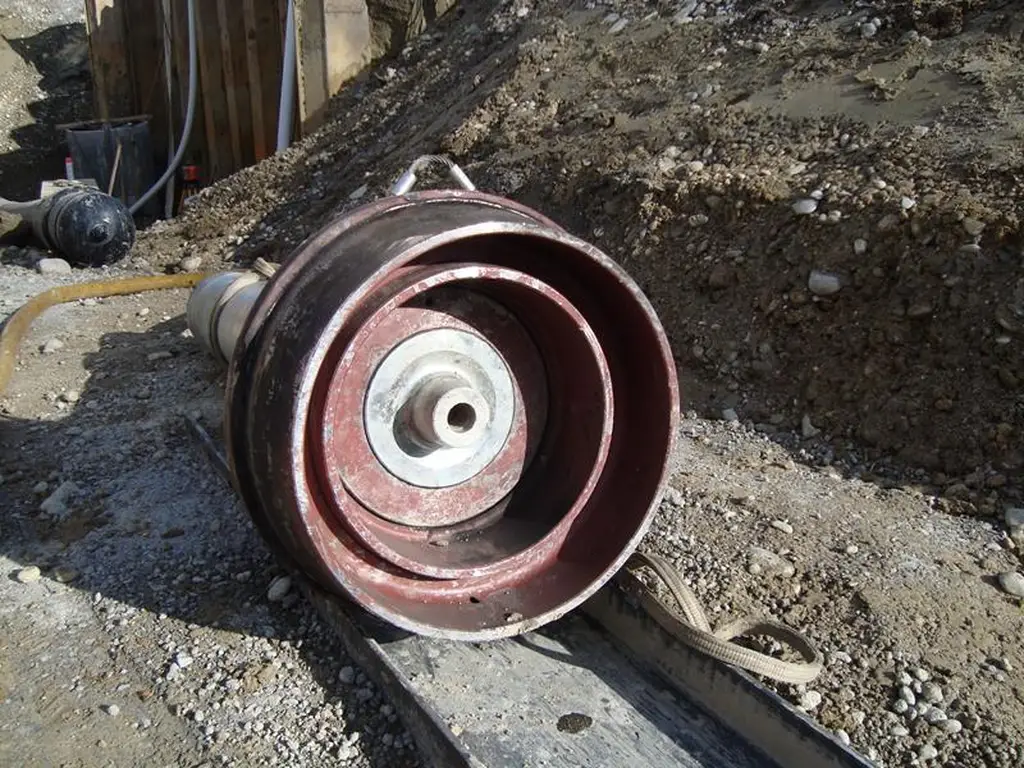

Ram Rings / Lock-in

Match the correct pipe diameter and provide the connection arrangement required for effective energy transfer into the steel casing.

03 / Launch preparation

Launching & Tensioning

Support accurate alignment and controlled setup at the launch, with equipment selected around the ram, casing and available working space.

04 / Equipment care

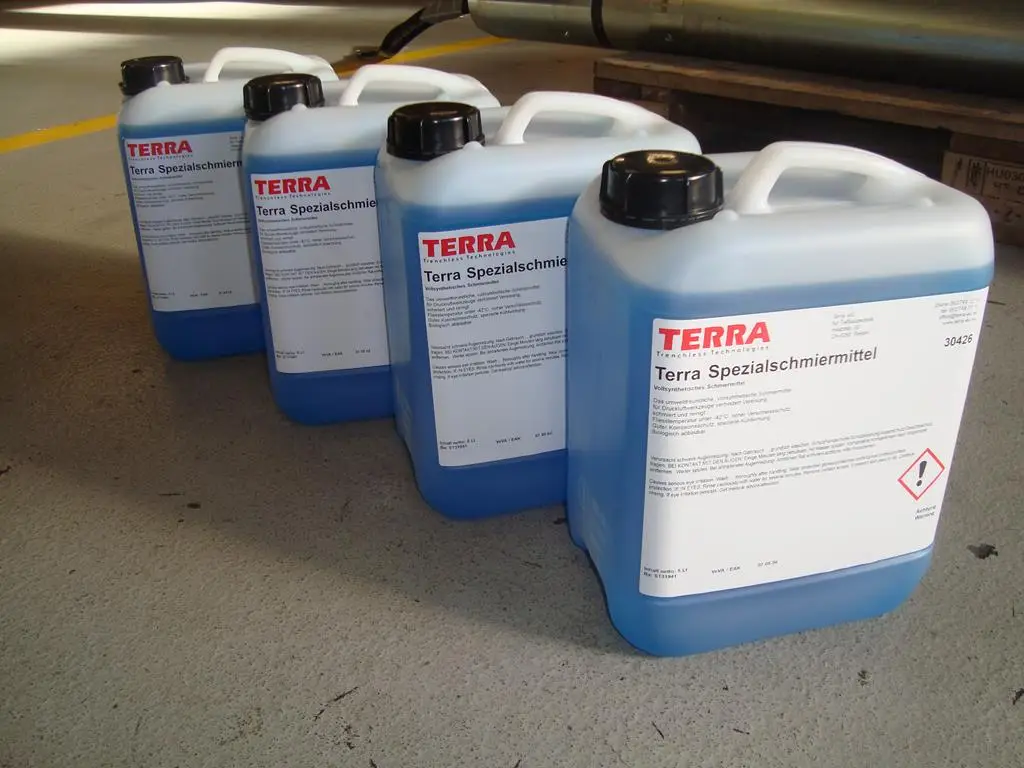

Lubrication & Maintenance

Keep the system serviced and ready for reliable operation. Correct maintenance and lubrication arrangements should be matched to the specific TERRA ram.

05 / Workshop support

Workshop / Service Tools

Practical tools and supporting equipment for inspection, maintenance and repair. Identify service requirements using the machine model and existing components.

Built around the installation

Match the components to the complete drive.

Choosing a ramming accessory is not simply a matter of selecting the correct diameter.

The hammer model, casing, drive length, launch arrangement and intended installation all influence the equipment required.

TA Drilling can help review the proposed system and identify suitable accessories before quotation.

✓ TERRA ram model

✓ Steel casing diameter

✓ Crossing length and ground

✓ Launch pit arrangement

✓ Ramming plates and rings

✓ Service and maintenance needs

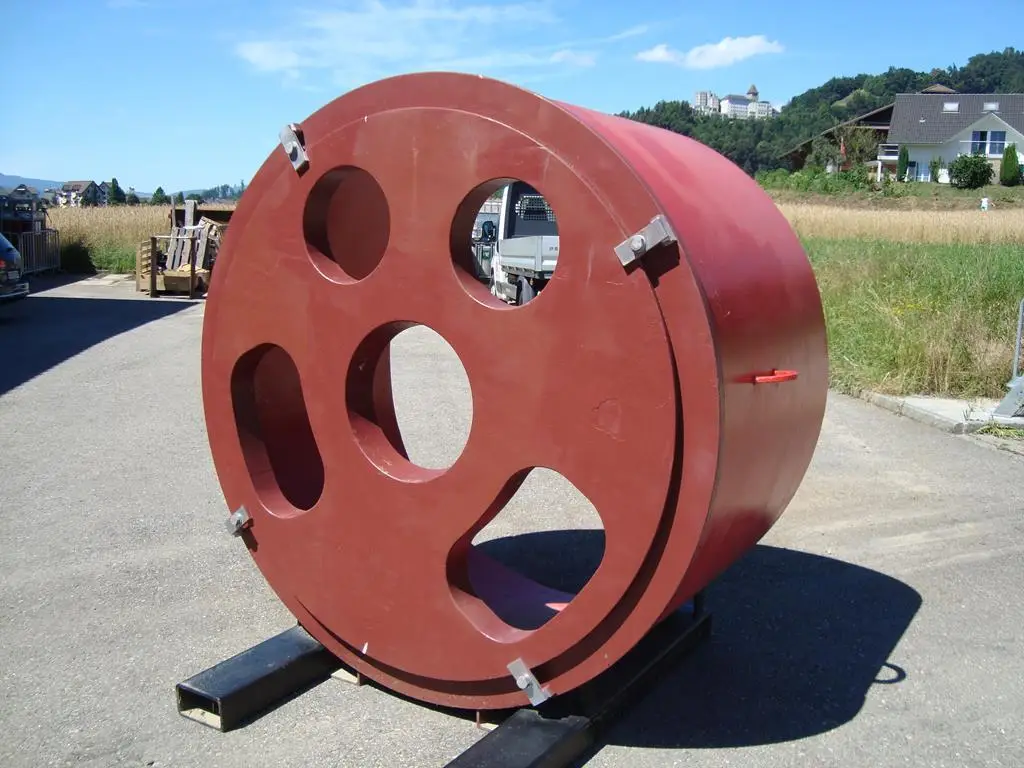

TERRA steel pipe ramming accessory component — TERRA ramming accessory component. Final selection depends on the machine and installation.

TERRA support in the UK

Need the correct ramming accessories?

Send TA Drilling the ram model, steel casing diameter, crossing length, ground conditions and project details so the appropriate accessory package can be reviewed.

Talk to TA Drilling
