TERRA compact pit-launched HDD

MINI-JET MJ1600.
Maximum output. Minimum space.

A compact 4–6 tonne HDD system developed for accurate bores from very small launch pits and restricted working areas.

Explore the product
6 tonnesThrust & pullback
1,600 NmMaximum torque
Up to 50 mDirectional bore
Ø 300 mmBackream diameter
MINI-JET MJ1600.Maximum output. Minimum space.
Product overview

Compact geometry with professional drilling capability.

The MJ1600 combines a machine length of roughly 1.10 metres with short one-piece drill rods and a tight 15-metre minimum bend radius.

  • Machine length of approximately 1.10 metres
  • 0.5-metre one-piece drill rods
  • Up to 52 l/min standard high-pressure pump
  • Optional 95 l/min FMC pump configuration
Range & configuration

Plan the complete MINI-JET system.

Combine the drill frame, Hatz diesel power pack, mixing and pumping equipment, sensing and tooling around the bore.

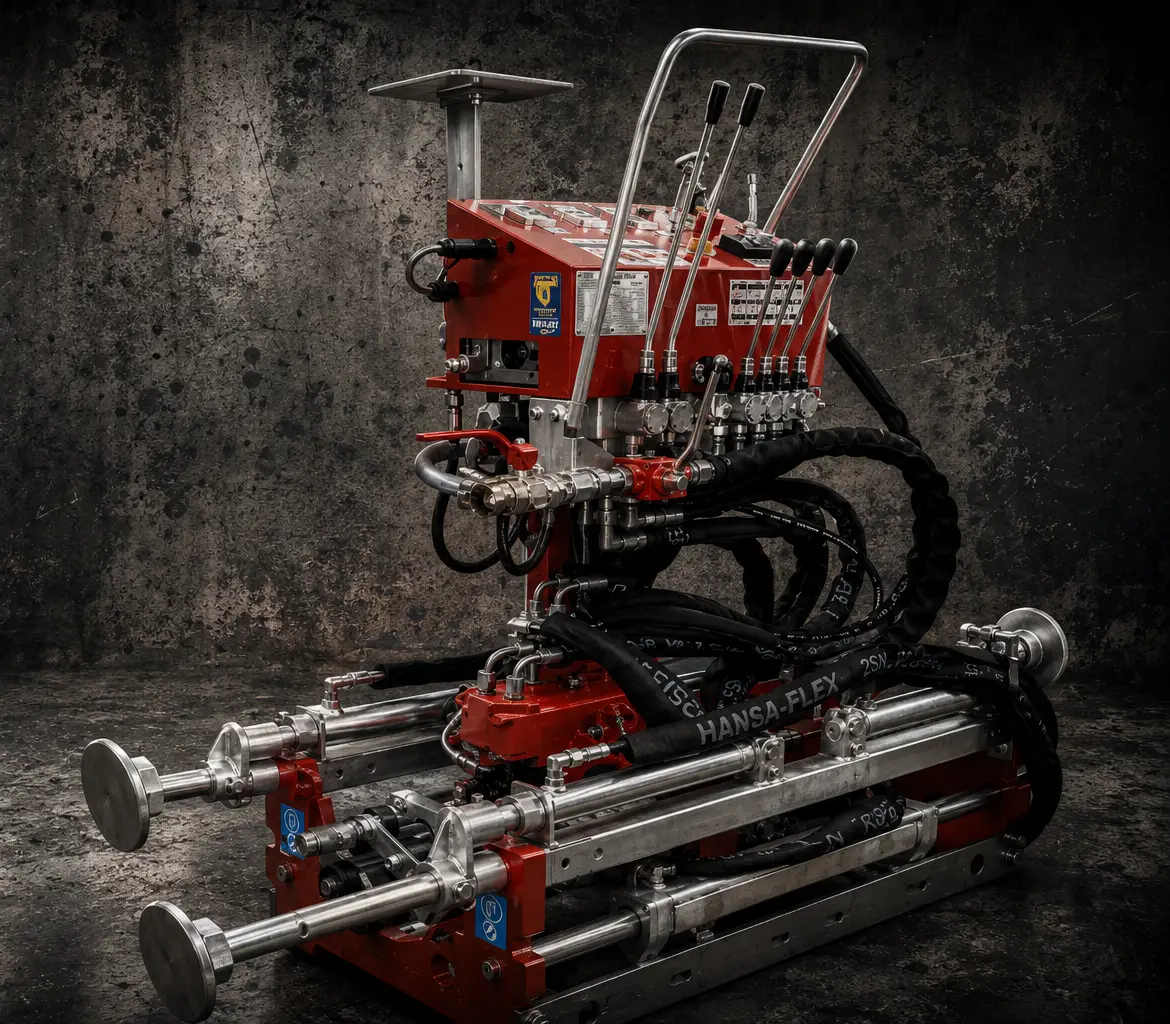

MJ1600 Drill Frame
DRILL FRAME

MJ1600 Drill Frame

Compact pit-launched drilling capability for restricted-access installations.

Machine benefits
OPERATING BENEFITS

Machine benefits

Key features supporting handling, rod life and productive operation.

6 tpull/push
1,600 Nmmaximum torque
Up to 50 m*typical directional bore
Up to 300 mmbackream diameter
Approx. 1.10 mmachine length
52 / 95 l/minstandard / optional pump

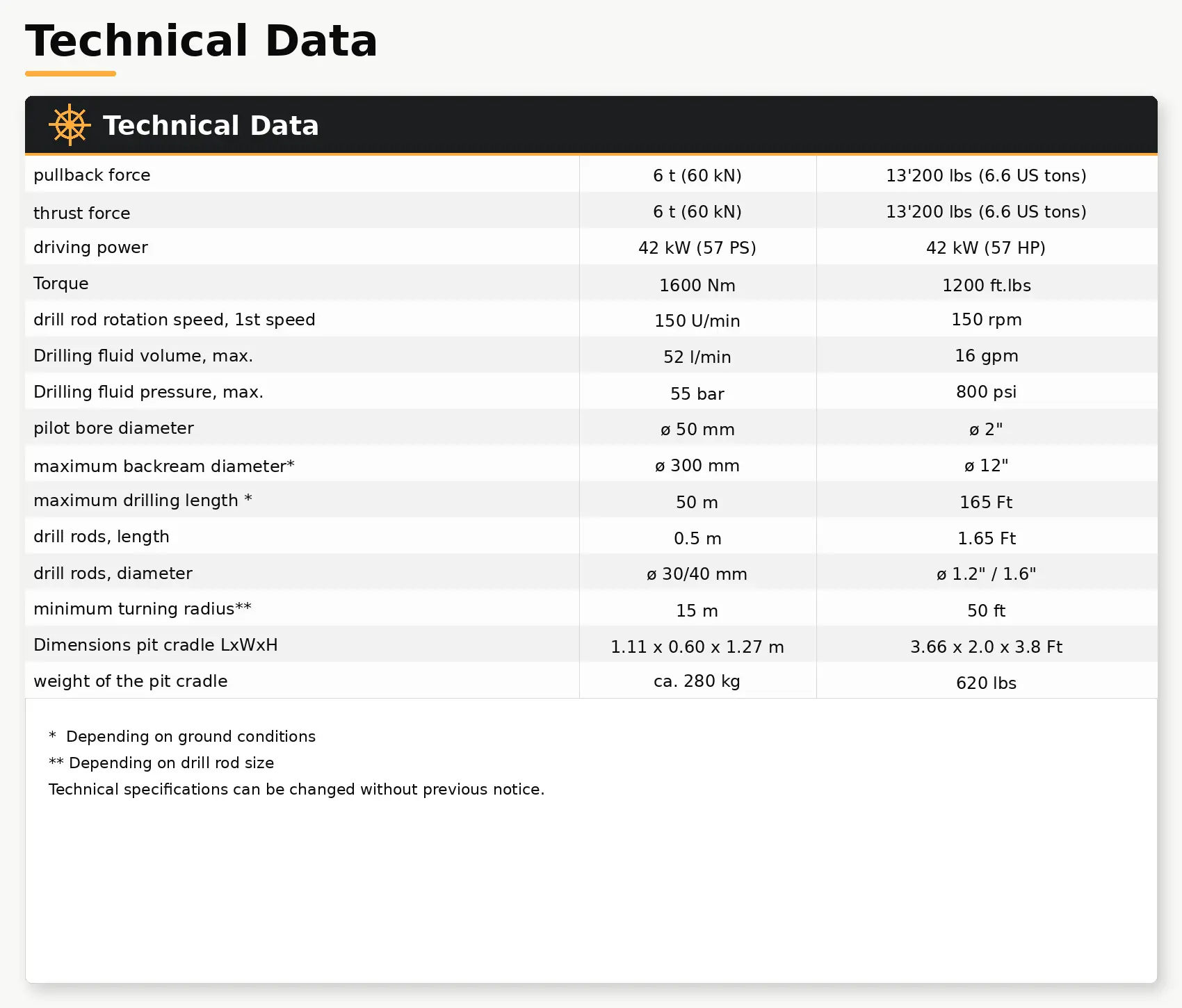

TECHNICAL DATA

Confirmed performance

*Typical bore length depends on ground conditions, tooling, bore geometry and configuration.

Specify with confidence

Match the product to the application.

Pit length

Use the compact frame to minimise excavation requirements.

Bending radius

Plan the route around the 15-metre minimum radius.

Fluid demand

Match pump output and mixing capacity to the bore.

Installation diameter

Plan reaming stages up to the required product size.
