TERRA-HAMMER Accessories
The right accessories for every stage of the bore.
Genuine TERRA piercing tool accessories for accurate launching, reliable connections, pipe pulling, bore expansion, locating and servicing.
Complete your pneumatic piercing equipment setup with accessories selected around the tool model and installation requirements.
7 groups
Accessory categories
15 / 20 / 25 m
Published air hose lengths
KOK-LD
Traceable head adapters
UK support
Equipment advice from TA Drilling
01 / Launching accessories
Accurate alignment starts at the launch.
Correct launch alignment is an essential part of a successful pneumatic piercing installation.

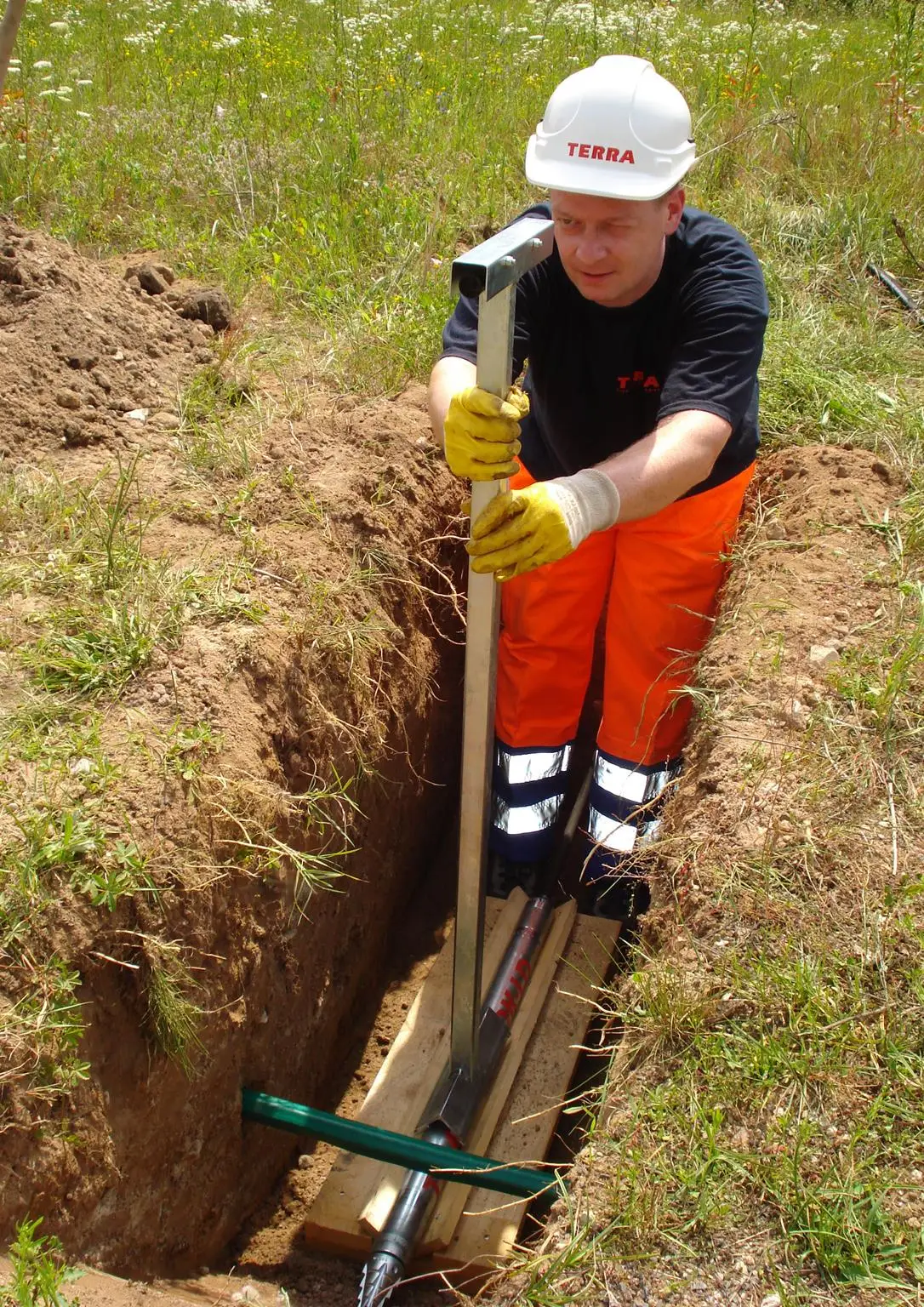

TERRA offers launching accessories including a launching cradle and a height-adjustable aiming staff.

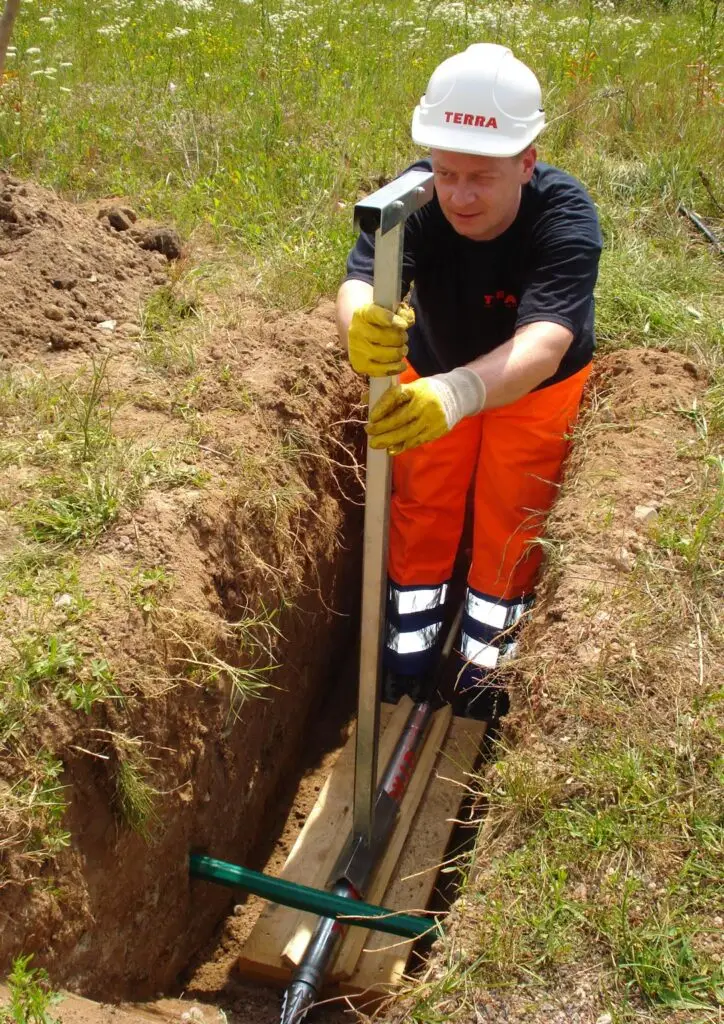

The aiming staff incorporates an inclination scale, supporting the setup of the planned bore angle and direction.
✓
Launching cradle for
positioning the tool
✓
Height-adjustable
aiming staff
✓
Inclination scale
for alignment setup
Planning the launch
Check pit dimensions, bore alignment, ground stability and the appropriate launching equipment before work.
02 / Pulling accessories

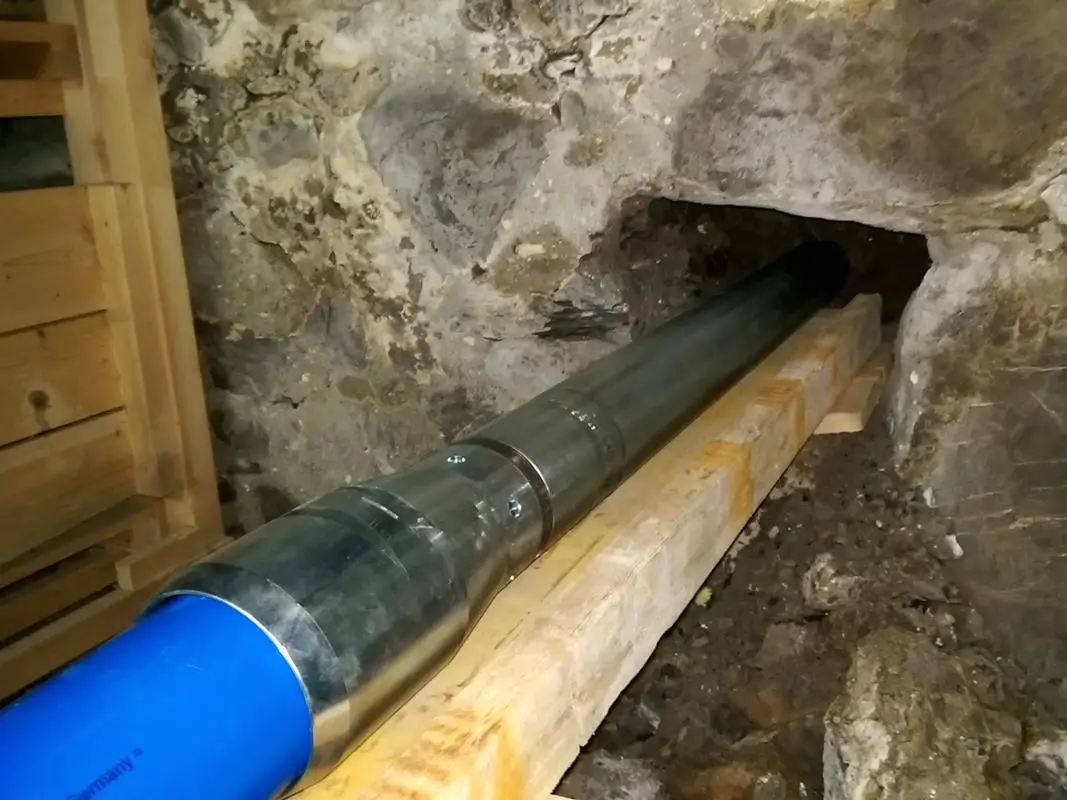

Pull suitable pipes into position during piercing.
TERRA pulling accessories are designed to provide a compact connection between the piercing tool and the product pipe.
Interchangeable centring adapters allow the arrangement to be configured for different compatible pipe sizes.
When used with the appropriate pulling cable, the system can support pulling short pipes or longer coiled pipe lengths into suitable ground during the piercing operation.
✓
Compact pulling
accessory arrangement
✓
Interchangeable
centring adapters
✓
Options for different
compatible pipe sizes
Confirm pipe compatibility
The pipe material, outside diameter, connection method and pulling arrangement must match the selected TERRA equipment.
03 / Expanding accessories
Increase the bore diameter with compatible expanders.
TERRA offers expanding accessories designed for applications where the original pilot bore needs to be enlarged.

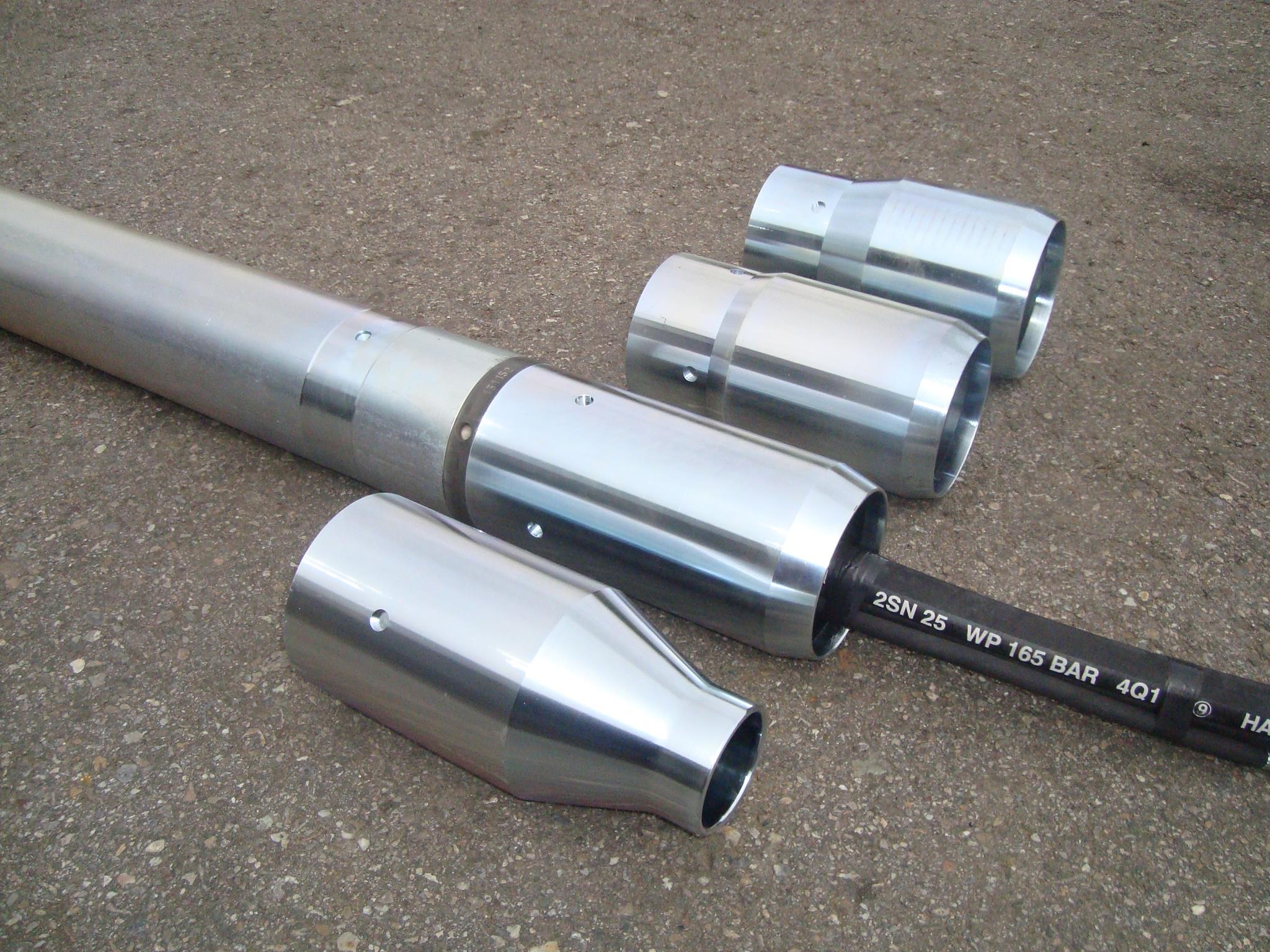

Oversized end sleeves and compatible adapters can enable a larger bore diameter to be created using the same TERRA-HAMMER in a subsequent operation.
This provides a configuration option for installations requiring a bore larger than the original tool body.
✓
Compatible oversized
expander sleeves
✓
Larger bore diameters
for selected machines
✓
Expansion using an
appropriate follow-up
operation
Model-specific selection
Expander availability, permissible bore size and ground suitability depend on the TERRA-HAMMER model and accessories.
04 / Connecting accessories
Reliable air connections for pneumatic piercing.
A suitable compressed-air supply and hose connection are essential to TERRA-HAMMER operation.
TERRA's accessory information includes air hoses available in 15, 20 and 25 metre lengths.

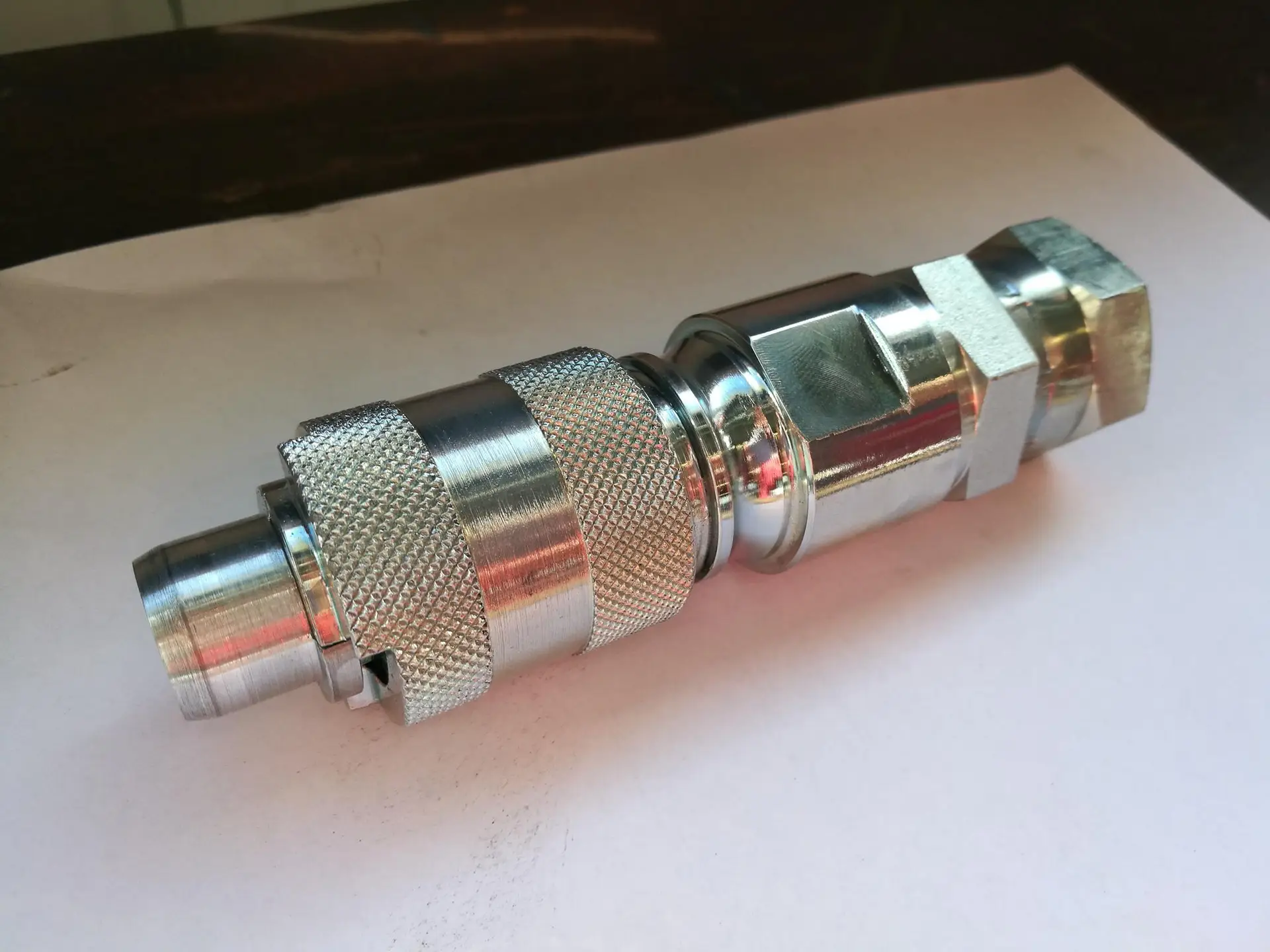

Quick-coupling components support straightforward installation and connection without additional tools, where the correct compatible fittings are used.
✓
Published hose lengths:
15 m, 20 m and 25 m
✓
Quick-coupling
connecting components
✓
Connections matched
to the piercing system
Air supply matters
Compressor pressure, required airflow, hose specification and coupling compatibility should all be checked against the selected tool.
05 / Traceable accessories
Track the tool's position and depth.
TERRA's traceable piercing system uses an electronic sonde housed within a compatible KOK-LD head adapter.

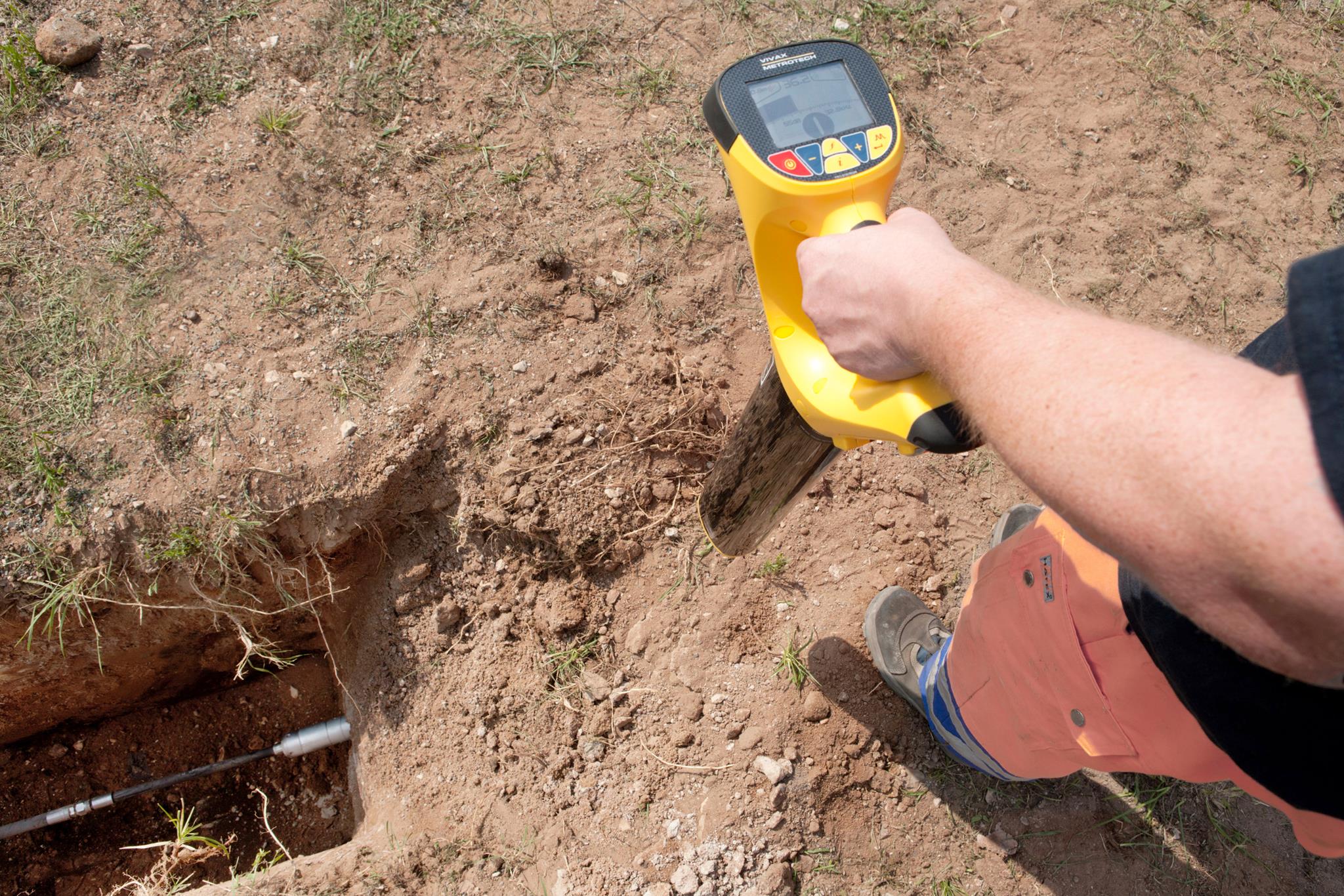

The sonde works with suitable handheld radio locating equipment featuring an LCD display.
This arrangement enables the operator to determine the position and depth of the traceable piercing tool.
TERRA describes KOK-LD adapter options for compatible TU machines, including TU 080plus SK and larger configurations.
✓
KOK-LD locatable
head adapters
✓
Protected electronic
locating sondes
✓
Compatible handheld
locating receivers
06 / Ramming applications
Specialist applications for steel pipe installation.

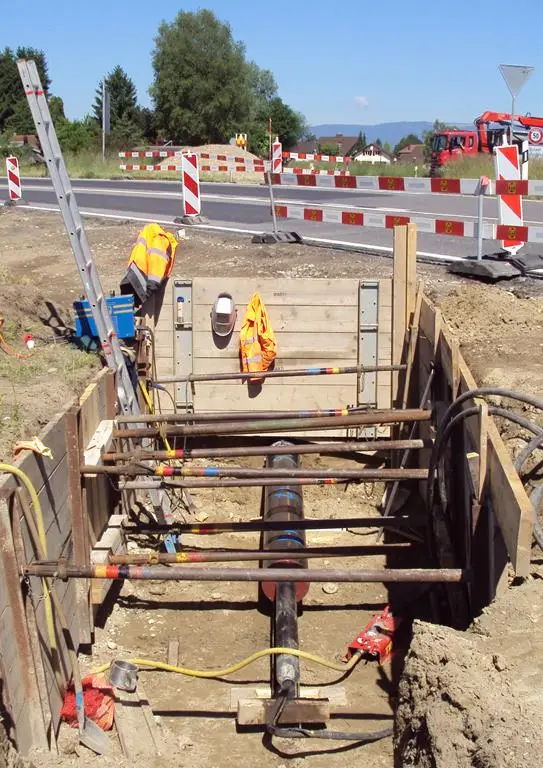

TERRA's manufacturer information also describes suitable TERRA-HAMMER piercing tools being used for steel pipe ramming and related applications.
Its accessory information refers to installations involving steel pipes up to 300 mm in diameter and lengths up to approximately 20 metres.
Those figures are manufacturer examples, not a universal capability for every piercing tool. The correct equipment depends on casing size, ground conditions, installation distance and required force.
Specialist application
Application-specific advice
TA Drilling can help identify whether a compatible piercing tool or a dedicated steel pipe ramming system is appropriate for the project.
07 / Servicing accessories
Keep your piercing equipment serviceable.

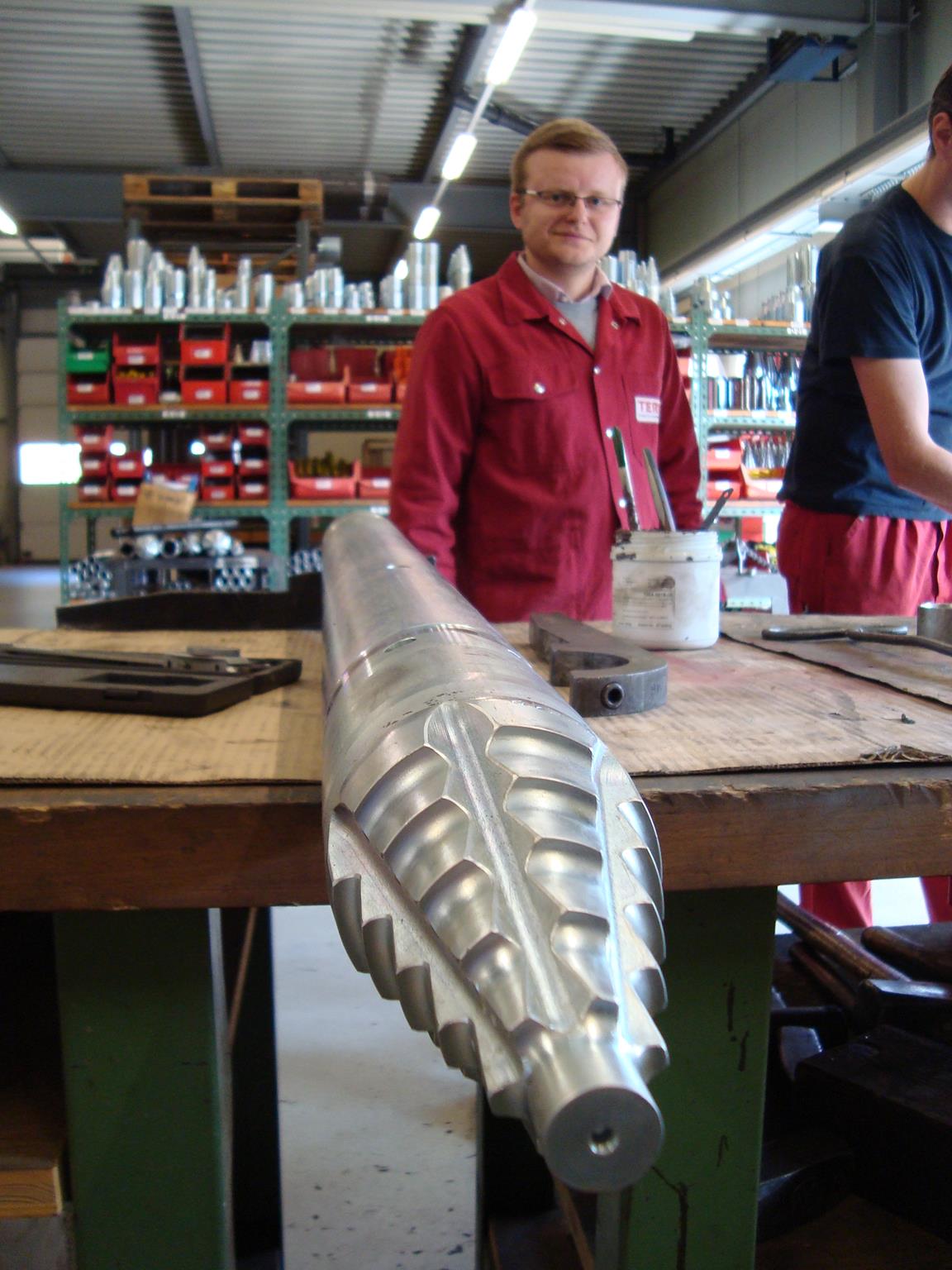

TERRA offers dedicated service kits for different TERRA-HAMMER piercing tool diameters.
The manufacturer describes these kits as including a toolbox and a selection of wearing parts associated with the corresponding tool.
Having the correct service components available can support planned maintenance, inspection and repair work.
✓
Tool-specific
service kits
✓
Replacement wearing
components
✓
Practical maintenance
and service support
Identify the exact model
When requesting replacement parts, provide the full TERRA-HAMMER model and any available serial or component information.
Equipment compatibility
Choosing the right accessories starts with the tool.
Different TERRA-HAMMER models use different connections, heads, diameters and operating requirements.
TA Drilling can help identify suitable accessories from the machine model and installation details.
Describe the installation
Include the bore diameter, crossing length, ground conditions and required accessory function.
Match the components
Check head adapters, hose connections, expanders, pulling equipment and locating compatibility before supply.
Accessory enquiries
Tell us what you need for the next bore.
Whether you're preparing a new installation or maintaining an existing machine, the following details will help us identify the correct accessories.
✓
TERRA-HAMMER model
✓
Required accessory
✓
Bore or pipe diameter
✓
Ground and site conditions
✓
Compressor and hose details
✓
Existing parts or photographs
Need help matching an accessory?
Send us the tool model, component details and intended application.
TA Drilling can help check the appropriate accessory configuration and discuss availability and supply.
Speak to TA Drilling
TERRA support in the UK
Complete your TERRA-HAMMER setup.
From launching cradles and pneumatic connections to head adapters, pulling accessories, expanding sleeves and service components, TA Drilling can help you specify the appropriate equipment.
Enquire with TA Drilling
