TERRA pit-launched HDD

TERRA-PIT DJ18.
Eight tonnes from the pit.

A powerful modular HDD system for pit or surface launch, combining compact machine length with professional thrust, torque and drilling-fluid performance.

Explore the product
8 tonnesThrust & pullback
3,000 NmMaximum torque
Up to 100 mDirectional bore
Ø 420 mmBackream diameter
TERRA-PIT DJ18.Eight tonnes from the pit.
Product overview

High productivity in a two-metre machine.

The DJ18 is designed for compact launch conditions without sacrificing capability. Separate hydraulic circuits allow maximum torque and maximum thrust or pullback to operate together.

  • Machine length of approximately 2.00 metres
  • Pit- or surface-launched modular configuration
  • Up to 95 l/min drilling-fluid volume and 70 bar pressure
  • ADBS II drill-sensor compatibility
Range & configuration

A modular system around the machine.

Plan the pit frame, hydraulic power pack, mixing and pumping station, rods and tooling as one complete setup.

DJ18 Pit Frame
PIT FRAME

DJ18 Pit Frame

The compact drilling frame at the centre of the pit-launched system.

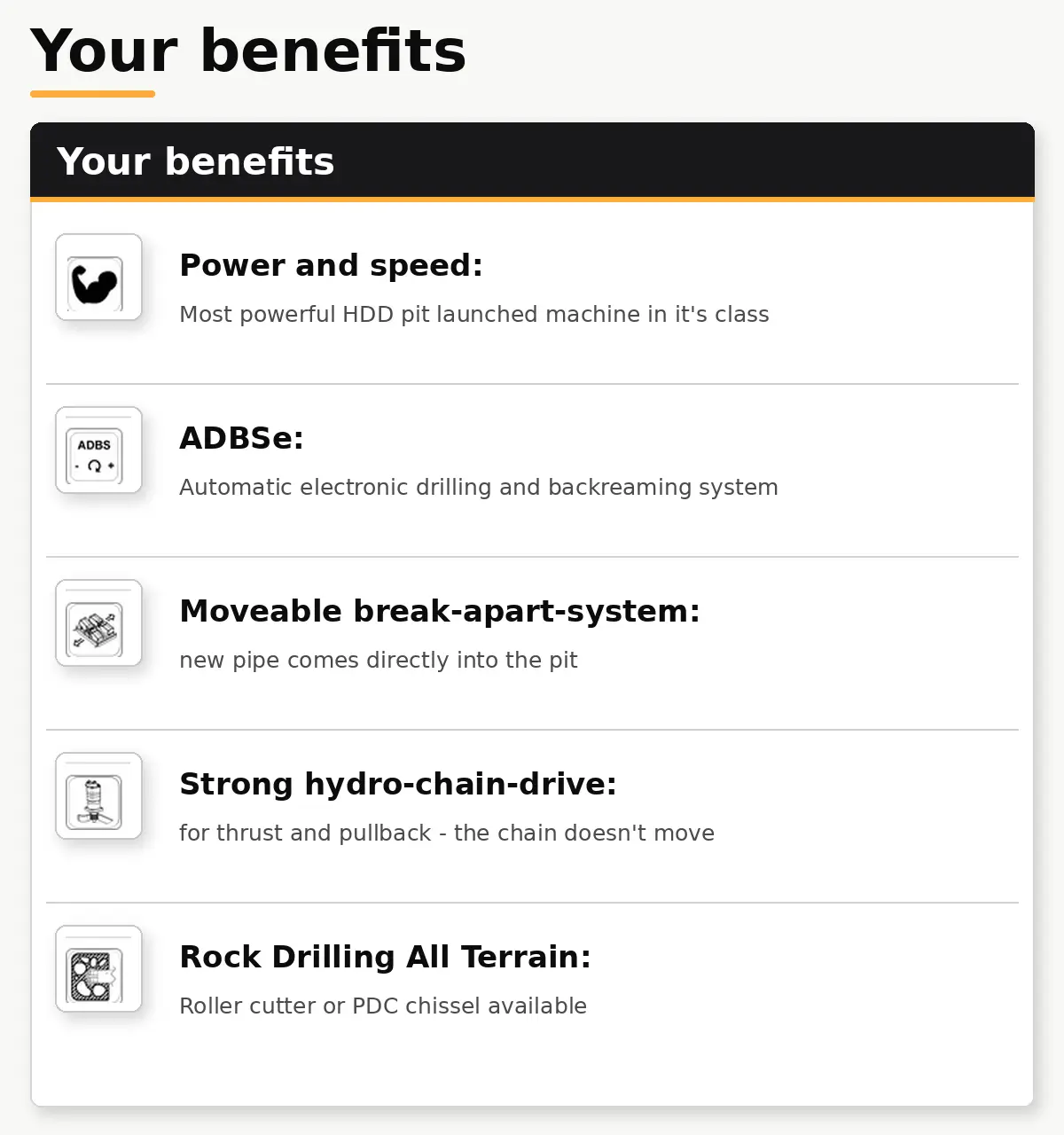

Machine benefits
OPERATING BENEFITS

Machine benefits

Review the features that support productive, controlled operation.

8 tpull/push
3,000 Nmmaximum torque
Up to 100 m*typical directional bore
Up to 420 mmbackream diameter
95 l/mindrilling-fluid volume
70 barfluid pressure

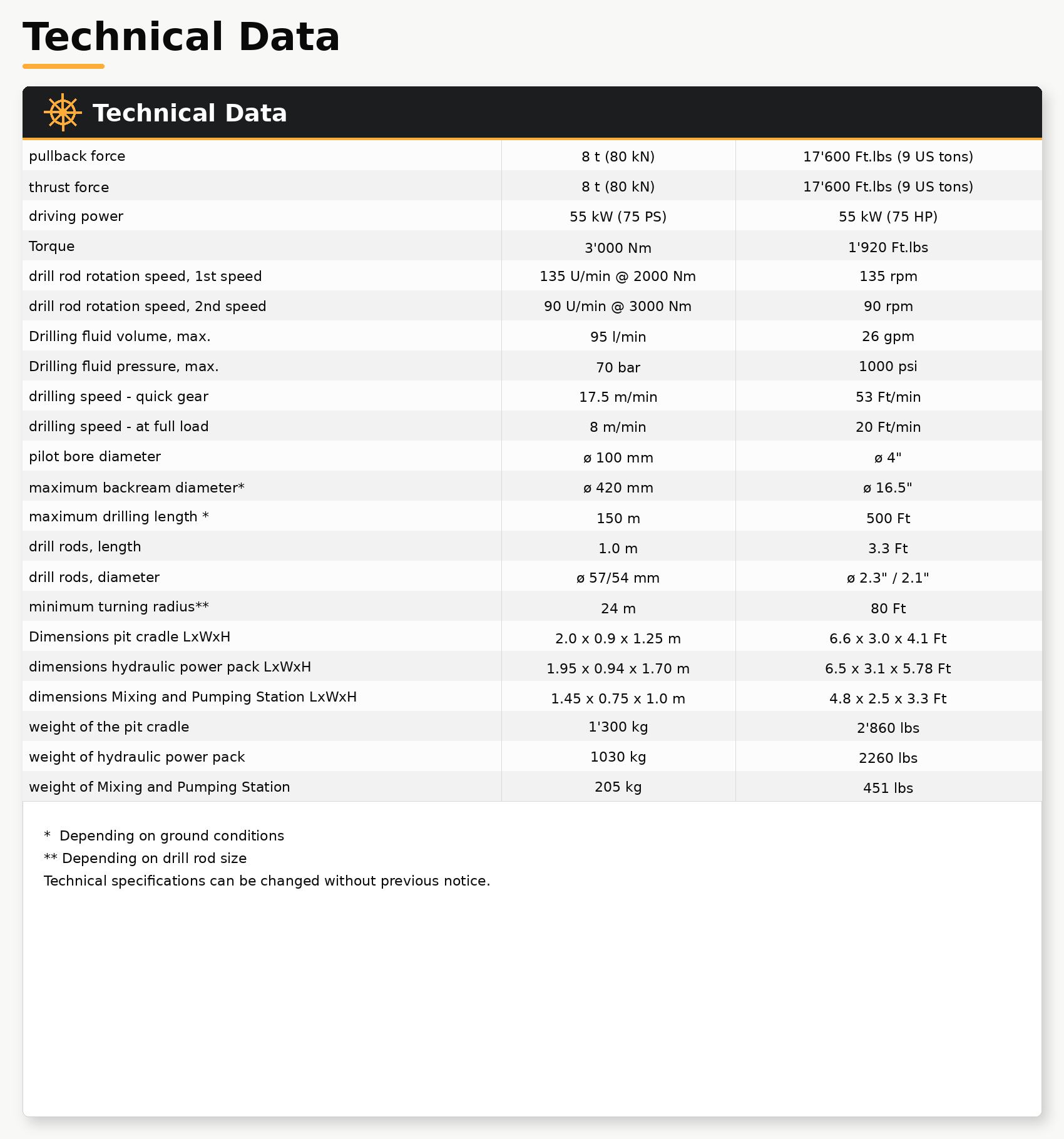

TECHNICAL DATA

Confirmed performance

*Typical bore length depends on ground conditions, tooling, bore geometry and configuration.

Specify with confidence

Match the product to the application.

Launch pit

Confirm excavation dimensions and working clearances.

Bore profile

Review length, diameter, line and minimum bend radius.

Ground conditions

Match tooling, fluid and reaming stages to geology.

Supporting plant

Plan power pack, mixing, pumping and lifting access.

Could the DJ18 suit your project?

Talk to TA Drilling about pit dimensions, tooling and the complete system.

Talk to TA Drilling
